Manage Meshes

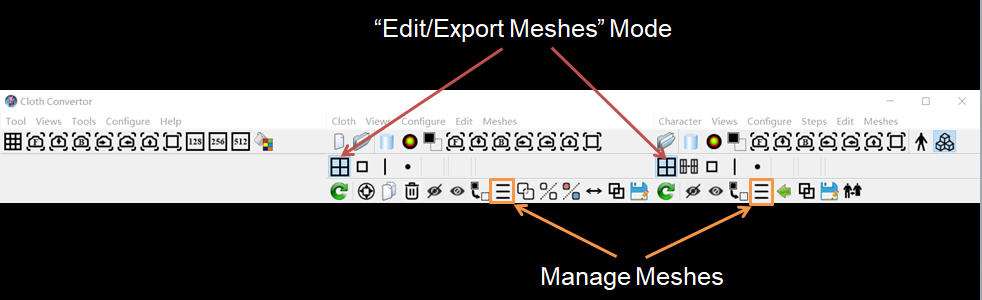

Clicking the "Manage Meshes" button pops up a dialog window as follows:

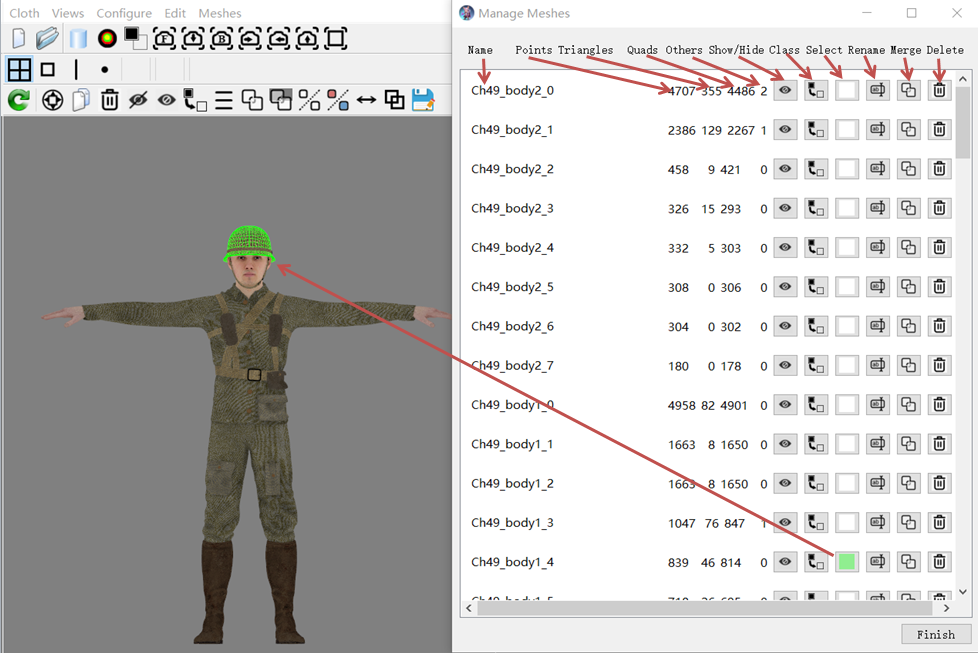

This window lists the following information and operation buttons of all the meshes in this scene.

Name​

This is mesh name. You can edit it if allowed.

Mesh Structure (Points, Triangles, Quads, Others)​

This is mesh structure information:

  • Points: number of vertices;
  • Triangles: number of triangle faces;
  • Quads: number of quadratic faces;
  • Others: number of other faces;

"Select" Multiple Meshes for Editing Together​

You can "select" multiple meshes by clicking on a mesh and at the same time pressing down the SHIFT or CTRL key.

Show/Hide​

Clicking this button shows or hides a mesh.

Class​

Clicking this button sets the face class of all the faces of a mesh or all "selected" meshes.

Select​

Clicking this button selects or unselects a mesh or all "selected" meshes. The selection of a mesh is indicated by a overlay of its wireframe in green color.

Rename​

Clicking this button will pop up the following dialog window allowing you to rename a mesh or all "selected" meshes:

If you click "Ok", all the "selected" meshes will be renamed as Name+Index where the Index is calculated using the Start Index and Step parameters. If the Step is set to 0, all the meshes will be renamed to the Name.

Merge​

Clicking this button will merge a mesh or all "selected" meshes.

Delete​

Clicking this button deletes a mesh or all "selected" meshes.

Finish​

Clicking this button closes the dialog window. You must close the window before performing any other operations on meshes.
